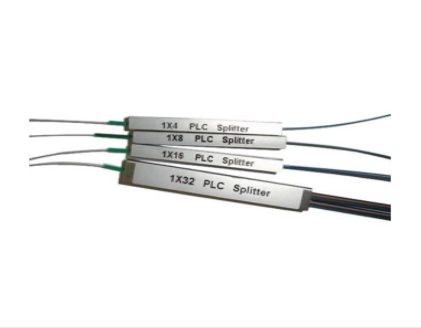

PLC Fiber Optic Splitter 1x8 With LC SC FC ST Connectors XDK

  • 1
  • 2

Brand Name : XDK

Model Number : XDK-PLC Splitter

Place of Origin : China, Vietnam

MOQ : 1 or negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30000 units per month

Delivery Time : 3-7 working days

Packaging Details : 40*4*4mm, to 100*20*6

Certification : ISO9001, ISO14001, UL, CPR

Type : PLC Splitter

Connector type : LC SC FC ST

Capacity : 1×2/4 /8/16/32/64/128 2×2/4 /8/16/32/64/128

Fiber cable length : 1.5m or specify

fiber dimensions : 0.9mm 2.0mm 3.0mm

Insertion Loss : International standard or elite optional

fully compliant : IEC-61754, TIA/EIA-604, GR326, RoHS

Customized : Available

Contact Now

XDK supply PLC Optial Fiber Splitter Micro Coupler Steel Tube with LC SC FC ST connectors way 1/2×2 4 8 16 32 64 128



1 × N PLC Optic Splitter Specification
OperatingWavelength(μm)
1260~1650
Port Configuration
1×2
1×4
1×8
1×16
1×32
Insertion Loss (dB)
3.6
7.5
10.2
13.5
16.9
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
Polarization Dependent Loss (dB)
0.2
0.2
0.2
0.25
0.3
Wavelength Dependent Loss (dB)
0.3
0.3
0.3
0.5
0.5
Temperature Dependent Loss(-40~85) (dB)
0.4
0.4
0.4
0.5
0.5
Returm Loss (dB)
55/50
Operating Temperature (℃)
-40~+85
Directivity (dB)
≥55
Storage Temperature (℃)
-40~+85

Application

  • CATV, LAN, WAN network
  • FTTX Systems
  • Optical fiber communication system
  • Telecommunication network
  • EPON/GPON

Package size

 Bare fiber type:

Item Unit 1*2/1*4/1*8 1*16/1*32 1*64 2*2/2*4/2*8 2*16 / 2*32
L*W*H mm 40*4*4 50*7*4 60*12*4 50*4*4 60*7*4



0.9mm Loose tube type:

Item Unit

1*2/1*4/1*8

2*2/2*4/2*8

 1*16 1*32 1×64 2×16 2×32
L*W*H mm 60*7*4

60*12*4

80*20*6

 100*40*6 80*12*4 100*20*6



PLC Fiber Optic Splitter 1x8 With LC SC FC ST Connectors XDK
